KIT FORGE STROKER 2.1L GT86 - HKS

Imprimer

Référence: 21004-AT002

Condition: Neuf

Kit stroker forgé 2.1L HKS pour Toyota GT86 / Subaru BRZ / Scion FR-S - 21004-AT002

Sur commande, délais 3 à 4 semaines

【Capacity Upgrade Kit for FA20】

Kit stroker 2.1L

Marque: HKS

Type: 86.0mm

Application: Toyota GT86 - Subaru BRZ - Scion FRS Type FA20 - 4U-GSE

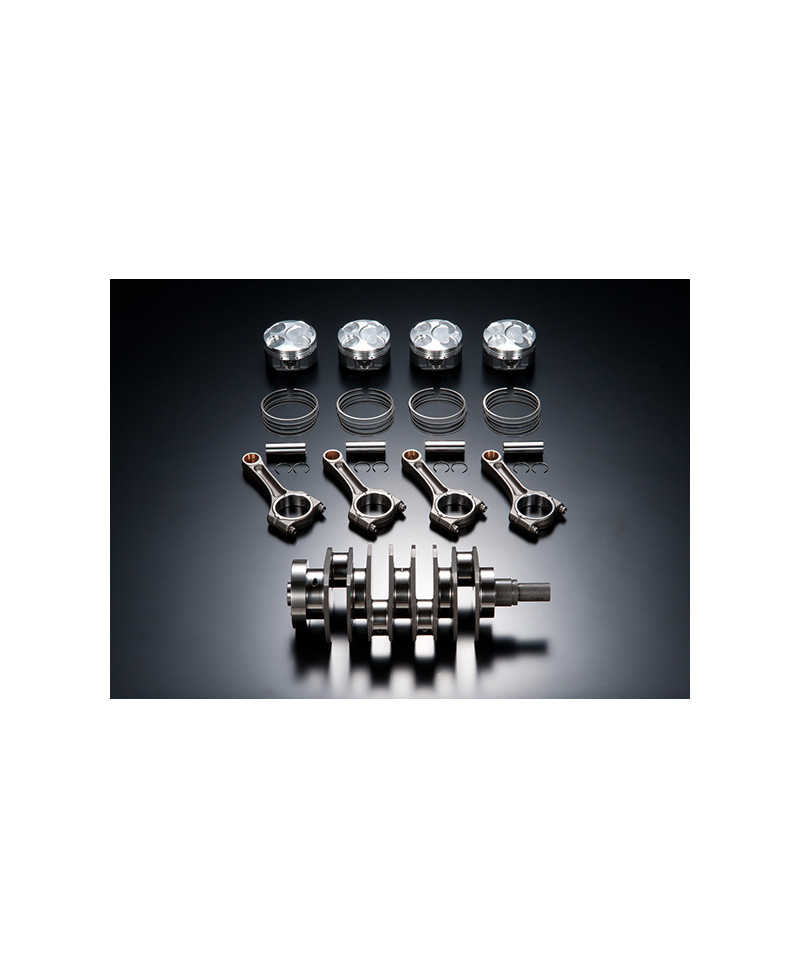

Livré complet avec toutes les pièces nécessaires au montage

ATTENTION: nécessite l'utilisation de coussinets de bielle Nismo pour moteur Nissan SR / RB ou ACL pour SR20

Ce kit permet d'augmenter la cylindrée à 2.1L sans avoir à réaléser le bloc et renforce la fiabilité grâce aux pièces forgées

Peut convenir pour le montage du kit turbo (11001-KT001) ou kit compresseur (12001-AT009)

Capacity Upgrade Kit developed by taking advantage of knowledge and experience acquired through D1 drift and time attack at Tsukuba Circuit.
This kit was designed exclusively for the FA20 engine by meticulous analysis and experiment. HKS delivers this kit with "Made in Japan" quality.
High performance specifications withstanding 550(ps)-50(kgf・m)!
This kit is for people want to upgrade all the way including the engine internals.

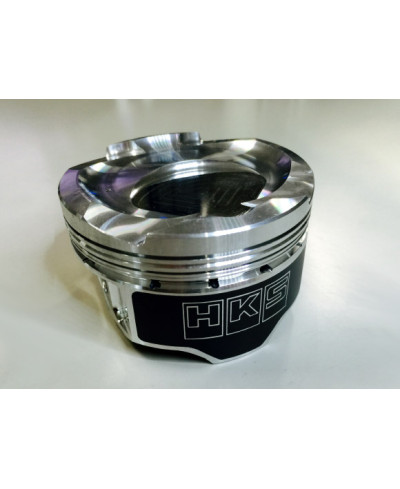

POINT-1:PISTON KIT

Carefully selected specially forged raw materials used.
Replacing the gasket enables both NA and turbo-charged engine users to use this kit.
In order to cope with the demands of high outputs, strength analysis and tests have allowed optimisation of compression ratio for flexibility of setup and high boost use.
Piston crown had 3D design in consideration of stock direct injection system.
Stock pistons skirts overhang from the block during bottom of travel. Short height pistons have revised potential issues in this area.
Friction, weight and other design properties to suit the needs of short height pistons.

POINT-2:CONNECTING ROD

Specific connecting rods have been designed to suit the longer stroke.
With no engine modifications, a special size crank pin has been set requiring new bearings.　
※The crank metals (Nissan RB26 & SR) must be purchased separately.
High strength I beam design and revised connecting rod bolt size.

POINT-3:CRANKSHAFT STROKE 90.0mm

Made from HKS special forged material
Perfect pin journal size was selected by merticulous analysis and experiment for extended stroke.
Carefully designed weights balance the engine for maximum efficiency.

POINT-4:Stock Bore Compatible　86.0mm

In order to maintain the engine block strength, the stock bore size is maintained meaning there is no need for cylinder liners
Reduces the cost of installation as liners, bore & hone and block facing processes are unnecessary.

			Stock	HKS 2.1L
Piston	Bore dia. mm		86	86
	Displacement cc		1998.2	2091.2
	Comp. Ratio (measured)	G/K 0.5 mm	12.1	12.4
		G/K 0.6 mm	12	12.3
		G/K 0.7 mm	11.9	12.1
		G/K 1.0 mm	11.5	11.8
	Boring/Horing		-	n/n
	Remarks		Cast D. ignition	Forged D. ignition
Con'rod	Big end dia.		53	51 (RB & SR)
	Bolt size		M9.5	M8
	Remarks		Split I-beam	Split I-beam
Crankshaft	Stroke mm		86	90
	Main journal dia.		68	68
	Pin journal dia.		50	48
	Remarks		Forged	Forged

PERFORMANCE

Test vehicle
Vehicle	BRZ(ZC6) Kansai demo car
Engine	FA20
Transmission	6MT
Parts	Specification
Suction	HKS Premium Suction
Exhaust Manifold	Kansai original
Front Pipe	Kansai original
Exhaust system	HKS Hi-Power Spec L
I/J	Stock
Fuel Pump	Stock
CPU	Kansai original ECU
Other	Big throttle
